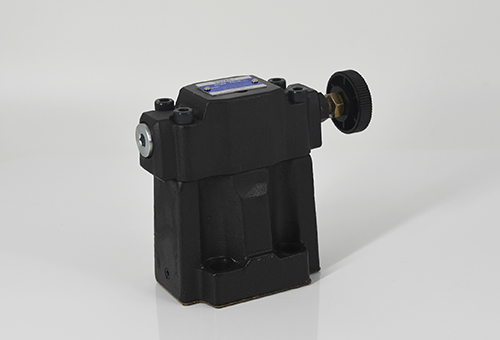

Pressure Control Valve

The pressure control valve controls the oil pressure in the hydraulic system to meet the different requirements of the actuator for output force,output torque and motion state. It uses the balance principle of hydraulic pressure and spring force to achieve and improve the stability of the system,such as stabilization,pressure holding,pressure reducing and pressure regulating. MODEL INSTRUCTION Name Model examples Specifications Oil discharge form Pressure regulating  range Remote control relief valve DT-01-22 01 - - Direct  acting relief valve DT-02-B-22 02 - B/C/H Pilot  controlled relief valve BT-03-V-32 03/06/10 - - Low  noise relief valve S-BG-03-V-L-40 03/06/10 - - Electromagnetic  control relief valve S-BST-03-V-2B3A-A100-N-46 03/06/10 2B3A/2B3B/2B2B/2B2/3C2/3C3 -- Low  noise electromagnetic relief valve F-A-S-BSG-03-V-2B3A-A100-N-L-51 03/06/10 - H  (C) type pressure control valve H(C) T-03-C-3-P-22 03/06/10 - L/M/N/A/B/C (one-way)  pressure reducing valve R(C)T-03-B-22 03/06/10 - B/C/H Balance  valve (pressure relief valve) RBG-03-R-10 03 - - Unloading  relief valve F-BUCG-06-B-V- 30/06/10 - B/C/H Electromagnetic  unloading relief valve BUCG-06-B-2B3A-V-ET-A240-N1-10 06/10 2B3A/2B3B B/C/H Pressure  relay F-ST-02-B-20 02 - B/C/H/K Semiconductor  pressure switch JR-02-100-10D 02 - - TECHNICAL FEATURE 01.Simple structure,small size,easy to assemble and disassembl 02.High pressure sensitivity and good stabilit 03.Good versatility,remote control and multi-stage voltage regulatio SPECIFICATION Name Maximum working  pressure（MPa） Use flow range (L/min) DT/G-01/02 25 ～16 BT/G-03/06/10 25 100～400 S-BG-03/06/10 25 100～400 BST-03/06/10 25 100～400 S-BSG-03/06/10 25 100～400 H(C)T/G-03/06/10 25 50～250 R(C)T/G-03/06/10 21 40～250 RBG-03 14 50 BUCG-06/10 21 125～250 DBUCG-06/10 21 125～250 APPLICATION AREA YUKEN series valves are mainly used in medium and high pressure machinery industries such as construction machinery,sanitation machinery,indoor machinery and injection molding machines.
