Products

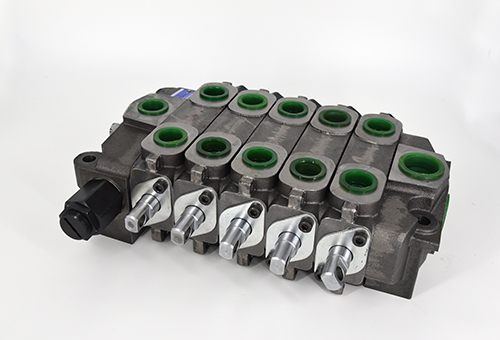

Multi-way Directional Control Valve

Previous: TY-HCD series multi-way valve Next: Pressure Control Valve

Model:

Categories: hydraulic valve »

Description:

The DF series multi-way valve is a multi-way valve structure,and each reversing unit can be freely combined. The multi-way valve mainly comprises three parts: an oil inlet body,a reversing joint body and an oil return body. DF series reversing has a variety of spool valve functions. The positioning mode includes steel ball positioning and spring return to meet the needs of different working conditions.

MODEL INSTRUCTION

Multi-way control valve	Nominal path	Pressure Level	Oil inlet mode	Reversing model	Reversing model	Return oil type	Design number
DF	20/35	※	- AA440	/ DAO3	/…	/Z440	-11

TECHNICAL FEATURE

01.Compact structure,no leakage

02.Small size and small quality

03.High pressure,high flog

04.Free combination of each commutator,good versatility

05.Small pressure loss and small commutation impact

SPECIFICATION

Model	Maximum working pressure（MPa）	Maximum working pressure(L/min)
DF20A	17	180
DF20G	24	180
DF35A	17	265
DF35G	24	265

APPLICATION AREA

DF series multi-way valves are mainly used in hydraulic systems such as petroleum machinery,lifting and transportation machinery,mining machinery,etc.
